Industrial Valves

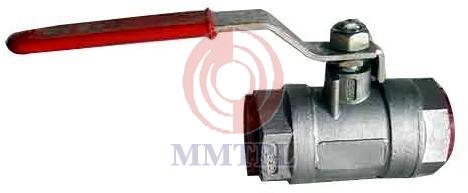

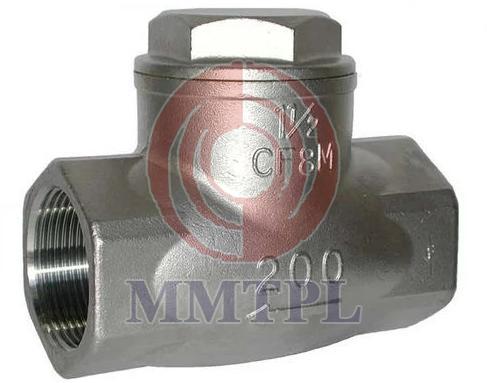

Leading Manufacturers, Exporters, Importer and Trader of Gate Valve, Strainer Valve, Pulp Valve, Investment Casting Ball Valve, Wafer Type Check Valve, Investment Casting Steam Trap, Globe Valve, Non Return Valve, DIN Non Return Valve and Knife Edge Gate Valve from Porbandar.

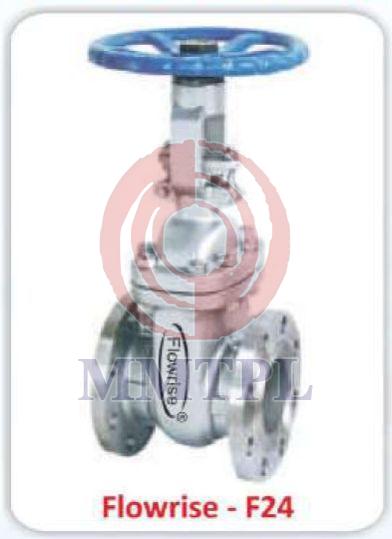

| Business Type | Exporter, Trader, Importer |
| Type | Bolted Bonnedt OS & Y Type |
| Brand Name | Flowrise |
| End Connection | Flanged End To ANSI B 16.5/BS 10 Table |
| Design Standard | API 600, API 602, API 603 |
| Inspection & Testing Standard | API 598 |
| Face to Face | As per ANSI B 16.10 |
| Size Range | 1/2 inch to 24 Inch |
| Pressure Rating | 150#, 300#, 600#, 800#, 1500# |
| Operation | Hand Wheel, Gear, Pneumatic Cylinder, Electrical Actuator Operated |
| Design | Rising Spindle Seal Design |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
| Business Type | Exporter, Trader, Importer |
| Brand Name | Flowrise |
| Color | Golden |
| Valve Type | Y Type |
| Specialities | Rust Proof, Non Breakable, High Tensile, High Quality, Heat Resistance, Durable |
| Surface Finishing | Polished |
| Usage | Gas Fitting, Water Fitting, Oil Fitting |
| Hole Diameter | Depend On Size |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
| Business Type | Exporter, Trader, Importer |
| Size | 2 To 24 Inches |
| Body | C.I, WCB CF8, CF8M |
| Gate | AISI 304, AISI 316 |
| Seat | Metal to Metal |
| Packing | PTFE Impreg. Synth, Fibre |
| Gland Follower | Ductile Iron |
| Stem | AISI 304 |
| Stem Nut | Gun Metal |
| Yoke | Carbon Steel |
| Seat Ring | AISI 304, AISI 316 |
| Operated | 310:Ductile Iron/>410 : Gjl 250 (gg 25) |
| Fastners | Zinc Plated Carbon Steel |
| Brand | Flowrise |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |

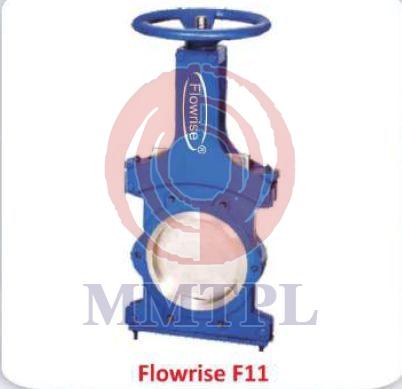

Flowrise Offers Pulp Valve (Plate Valve) Which Are Carefully Design To Offer Unrestricted Smooth Flow Of Viscous Fluids, Recesses Free Straight Passage Orifice Offers Minimum Body Contact Of Line Fluid, Avoids Accumulation of Viscous Fluid In The Orifice Ensures Unaltered Velocity. Our Pulp Valve Are Widely Used In Sugar Industries For Handling Molasses, Isolation Of Pulp And Fibrous Material In Paper Industries. Our Pulp Valve Are Ideally Suitable For Hopper Isolation In the Cement Industries. For Corrosive Slurries In The Chemical Industries, Powder Application Minerals & Metal Industries, Coal Ash With Abrasive Particle In The Coal & Mining Industries.
Standard flange connection Table "E", "D" Pulp Valve For Slurry Lines, Sludge And Viscous Media Handling, Pulp And Paper Stock Lines, Dry Solid, Powder Handling And Many More.
Valve Operation : Hand Wheel Operation, Pneumatic Operation, Hydraulic Operation, Chain Wheel Operation Electric Motor Operation, Bevel Gear Operation, Lever Operation.
| Business Type | Exporter, Trader, Importer |
| Size | 1/4 Inch' TO 12 Inch |
| Brand Name | Flowrise |
| Material | Metal |
| Application | Gas Fitting, Oil Fitting, Water Fitting |
| Color | Red, Silver |
| Feature | Blow-Out-Proof, Casting Approved, Durable |
| Pattern | Plain |
| Pressure | High, Low, Medium |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
| Business Type | Exporter, Trader, Importer |
| Size | 40 Mm - 300 Mm |
| Material | Cast Iron |
| Application | Gas Fitting, Oil Fitting, Water Fitting |
| Color | Blue, Grey |
| Feature | Blow-Out-Proof, Casting Approved, Durable, Easy Maintenance., Smooth Finish And Robust Design |
| Brand Name | Flowrise |
| Shape | Round |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
| Business Type | Exporter, Trader, Importer |
| Country of Origin | India |
| Type | Investment Casting |
| Material | Metal |
| Application | Industrial |
| Feature | Attractive Designs, Fine Finishing, Light Weight, Rust Proof |
| Surface Finish | Polished |
| Brand Name | Flowrise |
| Color | Black |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
| Business Type | Exporter, Trader, Importer |
| Brand Name | Flowrise |
| End Connection | Flanged End To ANSI B 16.5/BS 10 Table, Buttweld End To ANSI B 16.25 |
| Design Standard | BS 1873/DIN |
| Inspection & Testing | BS 6765 |
| Face to Face | As per ANSI B 16.10 |
| Size Range | 1/2 inch, 24 inch |
| Pressure Rating | 150#, 300#, 600#, 800#, 1500# |
| Operation | Hand Wheel, Gear, Penumatic, Electrical Actuator Operated |
| Features | Bolted Bonnet, OS & Y Type, Rising Spindle Seal Design |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
| Business Type | Exporter, Trader, Importer |
| Brand Name | Flowrise |
| End Connection | Flanged End To ANSI B 16.5/BS 10 Table, Buttweld End To ANSI B 16.25 |
| Design Standard | BS 1868/API 6D |
| Inspection & Testing Standard | BS 6755/API 6D |
| Face to Face | As per ANSI B 16.10 |
| Size Range | 1/2 inch to 24 inch |
| Pressure Rating | 150#, 300#, 600#, 800#, 1500# |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
| Business Type | Exporter, Trader, Importer |
| Type | Industrial Valves |
| Brand Name | Flowrise |
| Material | Metal |
| Usage | Water Fitting |
| Color | Silver |
| Number Of Way | 2way |
| Finishing | Polished |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
| Business Type | Exporter, Trader, Importer |
| Usage | Water Fitting |
| Condition | New |
| Finishing | Coated |
Preferred Buyer From
| Location | India, South Africa, United Arab Emirates, Malaysia, Pakistan |
Flowrise Knife gate is an UNII-DIRECTIONAL/BI-DIRECTIONAL Lug type valve designed according to MSS-SP-81 for industrial service applications. The Design of the Body and seat assures non-clogging shut of on suspended solids in industries such as:
- Pulp and Paper
- Waste Water Treatment Plants
- Power plants
- Food and Beverage
- Mining
- Chemical plants
Working Pressure
- DN 50/2" to DN 400/16" : 10kg/cm2 / 150 psi
- DN 450/18" to DN 800/32" : 4 kg/ cm2 / 60 psi
- DN 850/34" to DN 1050/42" : 3 kg/cm2 / 45 psi
Design Features :
- Body : One Piece integrally Investment Cast Body With Reinforced Ribs In Larger Diameters for Extra Body Strength. Internal AISI 304, AISI 316 Gate Wedges And Guides Allows For Tighter Shutoff. Port Design According To Mss-sp-81 Internal Design Avoids Any Build Up Of Solids That Would Prevent Valve From Closing.
- Gate : Standard AISI 304, ASI 316 Stainless Steel Gate. Gates Polished And Lapped For A Greater Seal Between The Gate With Both Packing And Seat. Bottom of The Gate Edge is Machined To A Bevel To Cut Through Solids For A Tighter Seal In The Closed Position.
- Seat : Unique Design That Mechanically Locks. The Seat in The Internal of The Valve Body With A Stainless Steel Retainer Ring. Standard Edpm: Viton, PTFE, etc.
- Packing : Standard Braided PTFE Impregnated Fibre, Graphite, Asbestoes For Better Shut Off, With An Easy Access Packing Gland Ensuring A Tight Seal Long Life Braided Packing is Available in A Wide Range Of Materials.
- Stem : The SS 304 Stem Offers A long Corrosion Resistant Life. For Rising Stem Handwheel With Gun Metal Stem Nut.
- Actuators : All Actuators Supplied By Flowrise Are Interchangeable, And Supplied With An Standard Mounting Kit To Allow For Installation On Site.
- Yoke or Actuator Support : Made Of Epoxy Coated Steel Compact Design Makes it Extremely Robust Even Under The Most Severe Conditions.
- Epoxy Coating : The Epoxy Coating On All Flowrise Cast Iron And Carbon Steel Valve Bodies And Components is Electrostatically Applied Making The Valve To On Corrosion Resistant With A High Quality Finished Surface. The Flowrise Standard Colour Is Racking Blue.
- Gate Safety Protection : Flowrise Automated Valves Are Provided With Gate Guards In Accordance With Safety Standards. the Design Feature Prevents Any Objects From Being Caught Accidentally While The Gate Is Moving.
