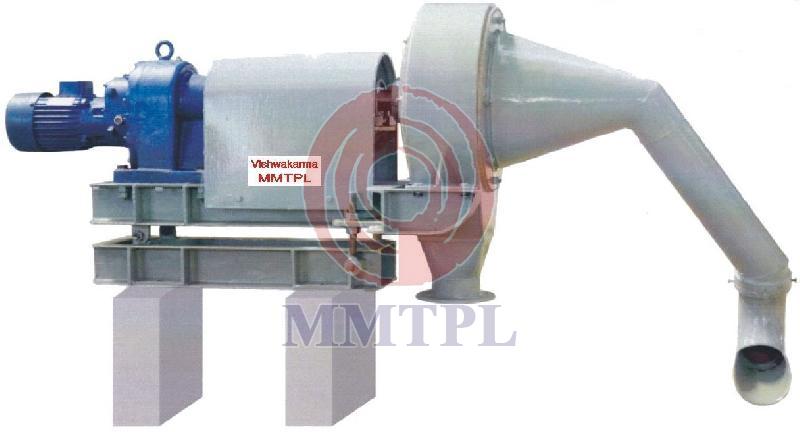

Clinker Sampler




We make available a huge product basket that our quality auditors check closely to maintain the set standards. We are capable of delivering the orders on time and at any desired Porbandar(India) as we are supported by up-to-the-minute facilities.



Easy and safe way to collect the clinker sample rom deep pan conveyor (DCP)



Features :

  • Motorized with remote control panel at safe  location.
  • Totally Enclosed system with seals on both sides of rotaition arm.
  • Easy to install. Depth of collecting mouth can be adjusted as per the requirement.
  • Compatible with two sizes DPC viz., 800 to 1000 mm wide and 1200 to 1500 mm wide.
  • The discharge can be extended by attaching extra pipe.
  • Completely does away with manual collection of sample from D P Conveyor, which is dangerous and unsafe.


For any other raw Materials sample collection arrangement can be Design and Supply.


Specifications

Maximum sample particle size 30 mm (standard = 12 mm)
Eliminated portion of the sample < 2 mm (standard) and up to < 8 mm
Maximum sample temperature 1500 °C
Power supply Any from 380 to 600 V; 50-60 Hz
Compressed air supply 6 bars, clean & dry
Maximum length of the sampling beam 4 300 mm
