Alumina Ceramic Liners

We are considered as the famed Alumina Ceramic Tiles Manufacturer from India. We offer Alumina Ceramic Liners that possesses the density of 3.5 gm/cc and resistance to temperature change. High Alumina Ceramic Liners and Tiles offered by us are available in two types such as Weldable Tiles and Plain Tiles. Alumina Ceramic Liners linings are known for their easy installation, rugged, reliability and trouble free life. We provide availability of liners and tiles in varying specifications as demanded by customers.

MILTUFF 90 Hi Alumina Ceramic Tiles /Liners
Bulk material movement, involving sliding, very often causes heavy wear of the equipment used, resulting in damage to equipment, lower reliability, production losses and lower capacity utilization.
Installation of ceramic liners is a solution, infact a necessity in today's competitive environment, where equipment availability and low operating costs are essential.

MILTUF 90 Alumina liners have a high density of 3.5 gm/cc, high hardness for superior wear limiting capabilities, high resistance to temperature changes for more energy input and short grinding cycles and extremely fine micro structure for nil contamination of material being ground.

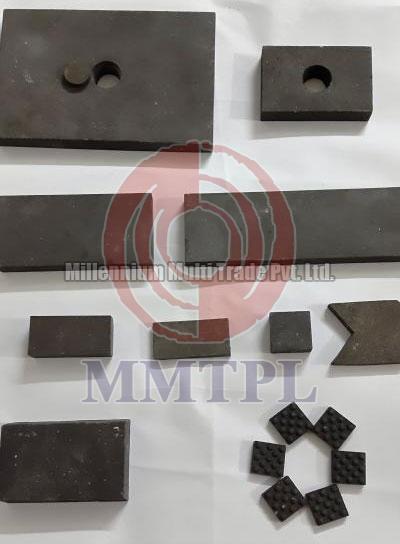

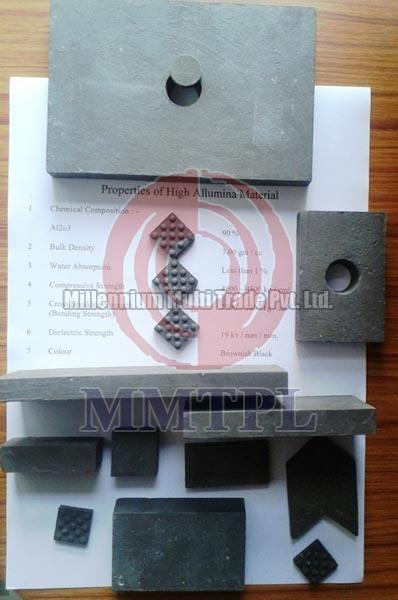

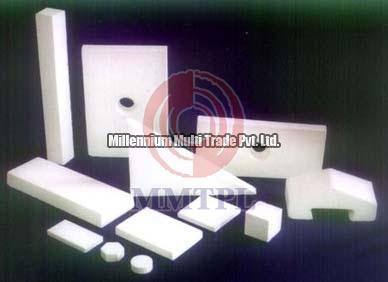

MILTUFF 90 Alumina Liners and Tiles come in two types

  • Weldable Tiles: Tiles with a metal ferrule in a tapered hole for plug welding onto the base steel, and a ceramic cap to protect the ferrule.
  • Plain Tiles that can be pasted on the area to be lined, providing a smooth, hard and wear resistant surface. For complex profiles, we offer pre-engineered tiles for optimizing the lining life. CAD is used to ensure a good fit for the contours of the lining surface.


For non standard profiles and applications, we are willing to study your requirement in detail and offer you a custom designed product to improve your plant operation and solve your wear problems.

MILTUFF linings are ready to install, rugged, reliable and give trouble free life.Our continuous efforts to improve our products enable us to handle profiles like square to round transitions, flow splitters and other surfaces that do not conform to regular geometric shapes systematically, resulting in very good product quality and repeatability.


Finishing Polished
Size 12 In. X 4 In. X 2 In.
Material Alumina and Ceramic
Working Time 30 min
Use Industrial launders, bins, feeders etc
Alumina Content 99.8%
